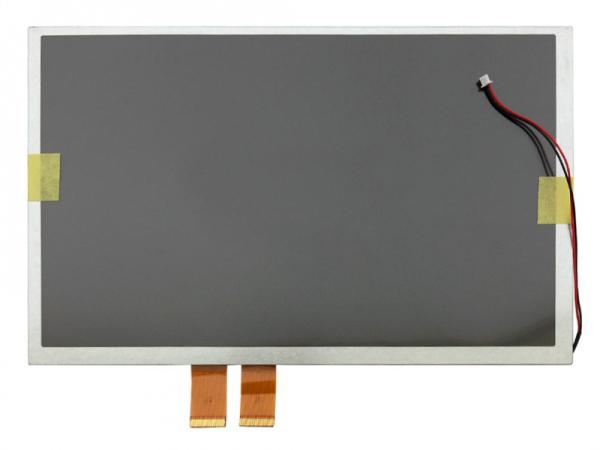

Industrial TFT Display, A101VW01 V3 AUO 10.1 Inch 800x480 Dots TFT LCD Module 6 O'Clock 60 Pins RGB Interface
A101VW01 V3 AUO 10.1 Inch 800x480 Dots Industrial TFT Display Key Specifications Special Features:
| Diagonal Size: | 10.1 Inch | Brand: | AUO |
| Resolution: | 800(RGB)×480 Dots | Good View At: | 6 O'clock |
| Outline Dimension: | 235 × 145.9 (H×V×D)(mm) | Active Area Size: | 219.6 × 131.76 (H×V)(mm) |
| Viewing Angle: | 65/65/45/65 (Typ.) | Inteface Type: | Parallel RGB (1 Ch, 6-bit) , 60 Pins FPC |
- A101VW01 V3 (Alias: A101VW01 V.3) is a 10.1" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without backlight driver, without touch screen.
- It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C.
- It's general features are summarized in the following: WLED Backlight, U/D,L/R Reverse, Matte.
- Based on its features, we recommend that this model be applied to Industrial, Digital Photo Frame, Portable DVD Player etc.
Manufacturer AUO
Model Name A101VW01 V3
Screen Size 10.1 inch
Screen Type LCM , a-Si TFT-LCD
Pixel Number 800(RGB)×480 (WVGA) 92PPI
Arrangement RGB Vertical Stripe
Active Area 219.6 × 131.76 (H×V)(mm)
Outline 235 × 145.9 (H×V×D)(mm)
Bezel Area 221.6 × 133.76 (H×V)(mm)
Treatment Antiglare
Luminance 300 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle 65/65/45/65 (Typ.)(CR≥10)
Response 12/18 (Typ.)(Tr/Td) ms
Good View at 6 o'clock
Work Mode TN, Normally White, Transmissive
Color Depth 262K 48% NTSC
Backlight 3S11P WLED , 20K hours , No Driver
Mass 315g
Used for Industrial , Digital Photo Frame , Portable DVD Player
Refresh Rate 60Hz
Touchscreen Without
Signal Type Parallel RGB (1 ch, 6-bit) , 60 pins FPC
Voltage Supply 3.3/8.8/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Max. Ratings Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C
A101VW01 V3 AUO 10.1 Inch 800x480 Dots Industrial TFT Display Applications
Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others
A101VW01 V3 AUO 10.1 Inch 800x480 Dots Industrial TFT Display Packing term
Protect product with polyfoam and multi layer paper board.
Special protect carton for exporting product,
Per customer requirement.
A101VW01 V3 AUO 10.1 Inch 800x480 Dots Industrial TFT Display Delivery term
For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.
For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.
Custom design OEM/ODM solutions
We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.
Our Advantages
Prompt reply within 12 hours.
Products with top quality.
Very competitive prices.
Small MOQ accepted.
More than 10 years’ experience in LCD R&D and manufacturing.
Strong R&D term supports perfect customized projects.
Fabulous after-sale service.
A101VW01 V3 AUO 10.1 Inch 800x480 Dots Industrial TFT Display Mechanical Drawing
